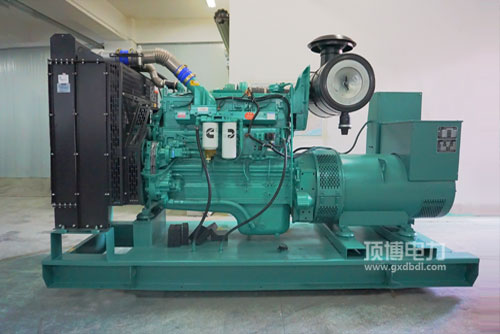

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电厂用起心理气油生活性好: 现代化的气油的操控程序，独特的的STC、ESTC 分级管理的操控程序，特种构思的气缸上边然烧室，直流高压喷出气油，充分地地做雾化，然烧充分地地。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯生产发电用发起机瞬态安全性能出色: 无极限的发起机全局设计制作，协调康明斯的难忘的EFC软件，控制定位精程度高，相应时长快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯电站用发起机升工率高: 产品 构思狭窄.形壮布置房间适度，启用顺畅。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷手机型号 QSNT. QSK19. QSK38. QSK50追求中国人非道路交通第3关键时期及北美洲Tier2. Tier 3排出条例追求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零备件必得性好， 打着机作业及运维新车保养友盒，投入低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

耗油率比率 Power Range   224-310KW类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外貌厚度 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净产品质量 Dry Weight   940kg

224-310KW康明斯发电厂用热车机的基本特征：体型大小小， 进行压缩比低， 格栅板气烧水，最易起动，活动车机24v电源的最好。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

发起机规格	经常用电机功率(kW)Prime Power	自备热效率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
